Beilizi Auto Parts CV Boot 1090 (SKU: BL‑CV1090) delivers a complete two piece tripod inner CV joint boot repair kit. This ready to install set fits tripod three lobe inboard CV joints for many North American pickups and SUVs. It serves DIY home mechanics and local repair shops across the United States. Meanwhile, dual coast US warehouses hold this unit in stock for fast domestic shipping.
Material Performance & Core Advantages
Many budget aftermarket CV boot kits use low grade recycled rubber. For this reason, they crack quickly under road salt and temperature swings. Our CV Boot 1090 uses pure formula CR neoprene rubber. It handles short term temperature spikes from ‑22 °F up to 230 °F. Its stable continuous operating window sits between ‑4 °F and 203 °F. Besides, this material resists grease, oil and ozone aging very well. Even so, TPEE boots perform better in regions with persistent deep freeze winter conditions.
Road salt and undercarriage grime damage cheap rubber components fast. On the contrary, CR neoprene holds steady against these common northern US hazards. Still, you must match material choice to your local climate and driving habits. This kit follows OEM style one piece molded construction with special three lobe locking ribs. As a result, it removes seam leak risks found within split type aftermarket alternatives.
Key Dimensions & Supplied Components
Small end inner diameter equals 28 mm. Large end inner diameter equals 86 mm. Overall boot height equals 93 mm. Shaft fitment covers 26 mm to 32 mm axle shaft sizes. Unique three lobe locking ribs are built exclusively for tripod inner CV joint assemblies. Furthermore, reinforced lip design fights tearing through repeated flex cycles.

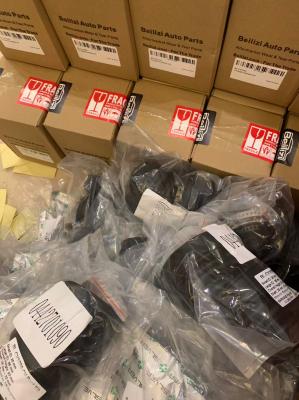

Double check your old boot dimensions and tripod joint style before placing an order. Otherwise, you may run into avoidable fitment issues. This kit ships with two CR neoprene CV boots, two 100‑gram moly grease sachets and four 304 stainless steel adjustable clamps. Notably, snap rings and circlips do not come inside this package. In addition, always remove old contaminated grease during every CV boot replacement job.
North American Vehicle Fitment Overview
This CV Boot 1090 is designed specifically for tripod style inboard CV joint applications. Compatible domestic pickup and SUV selections include Ford F‑150, Chevrolet Silverado 1500 and Ram 1500. Moreover, it matches Jeep Grand Cherokee for select model year trims.
Several Asian import SUVs also accept this boot for inboard tripod CV joint service. Among them are select Toyota, Honda and Nissan platform units. Nevertheless, dimension and tripod joint verification remains mandatory regardless of vehicle make. Not every year trim variant shares matching axle shaft geometry.
This boot works only for three lobe tripod inner joints and will not fit standard outer CV joints. Even so, cross reference OEM part numbers or factory service manuals first. Always measure your original boot before purchase to prevent mis fitment. Review full range product specifications of CV Boot 1090 for more details.
Bulk Order & Commercial Purchase Options
Repair shop buyers unlock adjusted terms for larger volume orders. Accordingly, send your inquiry via email or WhatsApp for formal detail. Email and WhatsApp deliver our most reliable support responses. Phone and SMS messages cannot guarantee fast feedback.

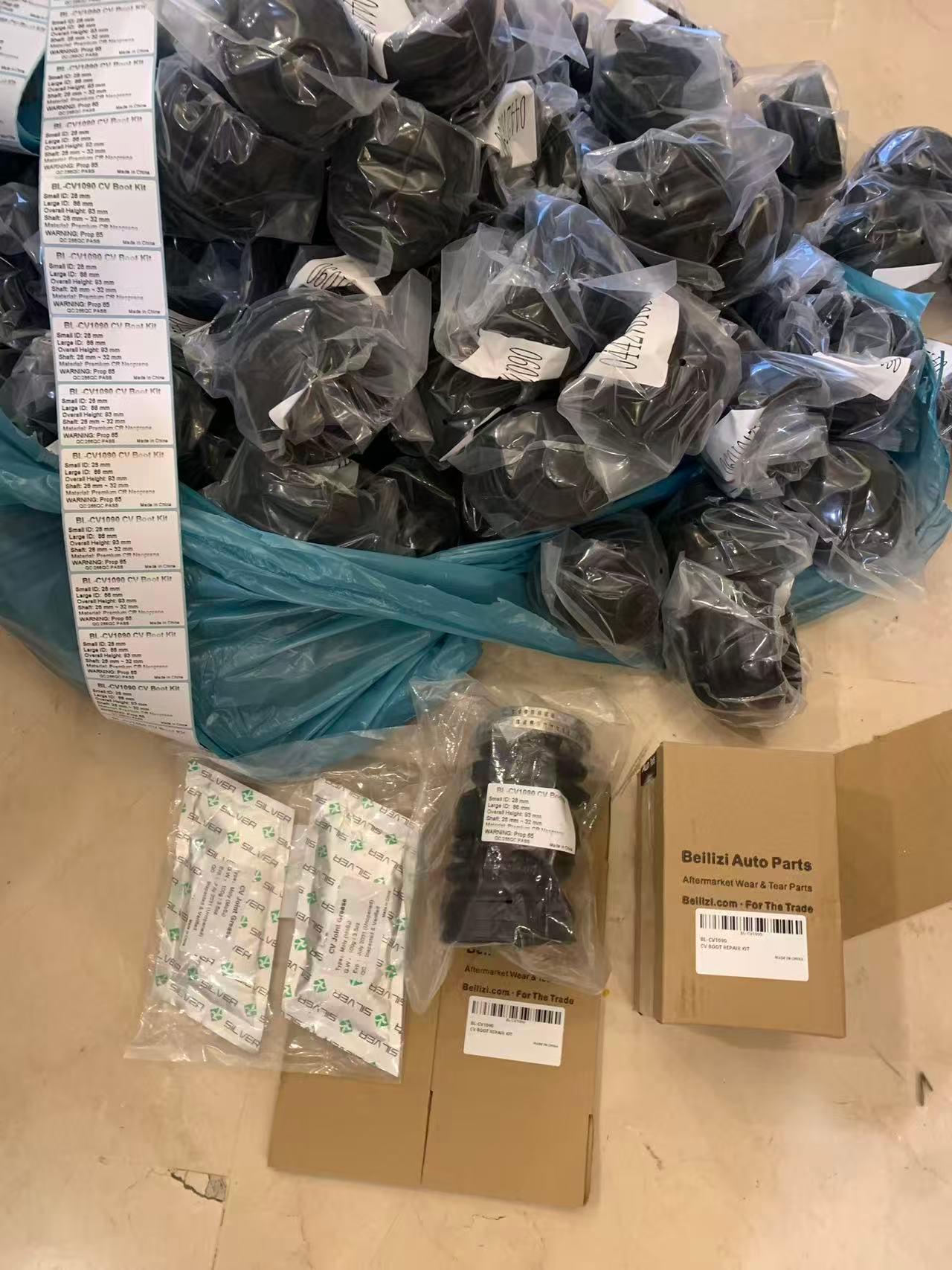

Every CV Boot 1090 receives individual poly bag packaging. This simple measure blocks rubber scratches, grease sachet damage and clamp oxidation. Goods stay protected during transit and long term shelf storage inside repair shop facilities.
Stay Updated On Automotive Repair Tips
Follow our INSTAGRAM. You will access practical CV joint service guidance plus fresh product announcements.
Frequently Asked Questions For CV Boot 1090
Q: What benefits come with CR neoprene rubber CV boots?
A: CR neoprene stands as a trusted aftermarket rubber compound. It balances solid temperature tolerance, grease resistance and ozone aging protection. In fact, it works reliably across most United States climate zones. Even so, TPEE material offers superior flexibility for continuously freezing winter locations.
Q: Why pick one piece molded boot over split seam designs?
A: Split seam boots cut labor time by skipping axle removal. Yet their glued seams create high risk leak points under heavy steering movement. Our one piece unit requires axle disassembly for installation. However, it eliminates seam related failure points entirely. Therefore, it delivers OEM comparable long term sealing performance.
Q: What makes this boot special for tripod CV joints?
A: This boot includes built‑in three lobe locking ribs made for tripod inboard joints. Standard generic inner boots lack this critical internal feature. For this reason, generic boots can shift or leak when mounted on tripod joint assemblies. Always confirm your joint type before ordering replacement parts.
Q: Which North American vehicles work with CV Boot 1090?
A: It fits select Ford F‑150, Chevrolet Silverado 1500, Ram 1500 and Jeep Grand Cherokee inboard tripod joints. Compatible Asian import units include select Toyota, Honda and Nissan SUVs. Still, verify 28 mm small end,86 mm large end,93 mm height plus 26‑32 mm shaft dimension for your exact trim and tripod joint style.
Q: Which parts arrive inside CV Boot 1090 kit?
A: Package includes two CR neoprene CV boots, two 100‑g moly grease sachets and four 304 stainless steel adjustable clamps. Snap rings and circlips are not included. Reuse original hardware or source separate parts for your axle assembly.
Q: What warning signs signal a failing CV boot?
A: Watch for rubber cracking, hardening or visible grease splatter around wheel hubs. Clicking noises during full lock steering act as another clear warning sign. Inspect CV boot condition during every routine oil change service. Early detection helps you avoid expensive full axle repairs later.
Q: Can shops get adjusted terms for volume purchases?
A: Yes, we provide adjusted terms for commercial purchase orders. Our dual US warehouse inventory supports fast restock for busy repair facilities. Reach out via email or WhatsApp to receive your relevant information.
Q: What warranty applies to CV Boot 1090?
A: This kit carries limited 24 months / 60,000‑mile warranty, whichever comes first. Coverage excludes normal wear and tear, bad installation and external contamination damage. California shoppers should note Prop 65 health warning notices for automotive aftermarket parts.
